Frame: Aluminum Plate

Filter Media: Superfine Glass Fiber

Media Separator: Hot Melt Adhesive

Sealant: Jelly Glue

Filtration Efficiency: H13(EN1882): ≥99.95%@MPPS (≥99.99%@0.3μm)

      H14(EN1882): ≥99.995%@MPPS (≥99.999%@0.3μm)

Operating Temperature: ≤70℃

Moisture Resistance: ＜100%RH     MPPS = Most Penetrating Particle Size

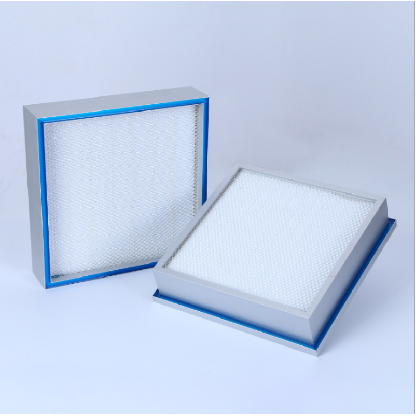

Application: Gel Seal HEPA Filter is an ideal terminal filter for industrial clean rooms and biological clean rooms, as well as a perfect matching filter for other air purification equipment.

  Gel sealing technology outperforms the commonly-used mechanical compression sealing method domestically. Featuring easy installation and highly reliable sealing performance, it has been widely adopted worldwide for HEPA filter sealing.

  Advantages: Excellent airtightness and good leak repairing performance.

  Custom sizes are available according to customer requirements, non-standard customization is acceptable.
