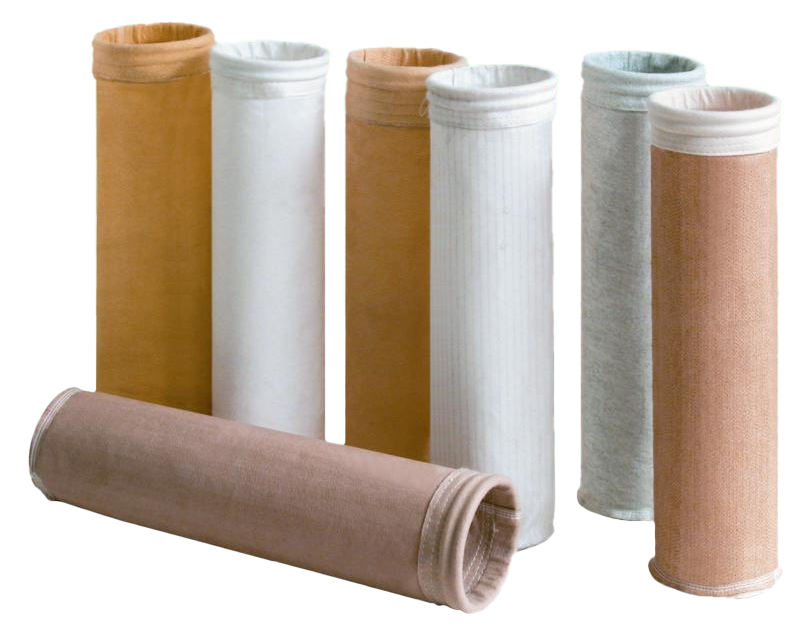

Aramid dust filter bag is made of aromatic polysulfonamide fiber. It owns excellent spinnability and wear resistance similar to polyester fiber, as well as outstanding acid and alkali resistance and dimensional stability. It is widely used in asphalt mixing plants, lithium battery spray dryers, non-ferrous metal smelting and other industries.

Advantages of Aramid Dust Filter Bag:

1. Excellent high temperature resistance, commonly used high-temperature filter bag. Continuous working temperature up to 204℃, instantaneous temperature resistance reaches 240℃;

2. Great flame retardancy with oxygen index of 29, hard to burn. It carbonizes slowly under 400℃ high temperature;

3. Superior chemical resistance, resistant to low-concentration acid, alkali, hydrocarbons and trace cyanide, adapting to diverse working environments.

Application Environments:

1. Asphalt mixing plants

2. Spray dryers in lithium battery industry

3. Powder classifiers in new energy industry

4. Drying equipment for non-ferrous metal smelting

5. Dust removal systems for pharmaceutical and pesticide industries

Model

Weight

(g/㎡)

Thickness

(mm)

Tensile Strength

(MPa)

Elastic Modulus

(GPa)

Elongation

(%)

Guaranteed Strength

(KN/m)

DT-2802800.193≥2000≥110≥2.0386
DT-4154150.286≥2000≥110≥2.0572
DT-6236230.430≥2000≥110≥2.0860
DT-8308300.572≥2000≥110≥2.01144
