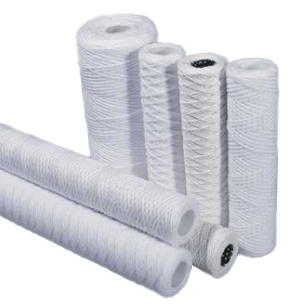

String wound filter cartridge is a kind of depth filter cartridge, suitable for filtration of low-viscosity and low-impurity fluids. It is precisely wound with textile fiber yarn such as polypropylene yarn and absorbent cotton yarn on porous PP or stainless steel skeleton. With loose-outside and dense-inside honeycomb structure, it can effectively remove suspended solids, fine particles, rust and other contaminants and deliver excellent filtering performance.

Features:

High filtration accuracy, large flow rate, low pressure drop, high pressure resistance and large dirt holding capacity. Non-toxic, odorless and free of secondary pollution. Gradient pore structure realizes ideal depth filtration effect. Various raw material options meet diverse liquid filtration demands for optimal purification result.

Connection Type: 222, 226, standard flat end

Cartridge Length: 5-40 inch

Outer Diameter: 63mm

Inner Diameter: 30mm

Filtration Rating: 1-200μm

Max Working Temperature: 60℃ for PP type, 120℃ for cotton type
