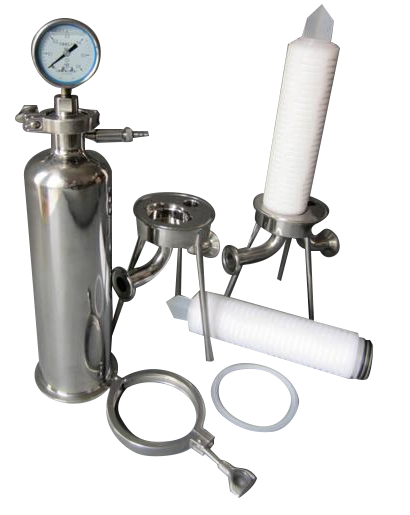

Single Cartridge Filter consists of top head, cylinder body and bottom seat. It features sanitary dead-space-free design complying with GMP standards, light weight and easy cartridge replacement. It offers large filtration area, uniform pore size, fast flow rate, no medium shedding, excellent thermal and chemical stability.

With compact structure and small footprint, it is easy to disassemble and ideal for low-to-medium pressure & low flow filtration. The cartridge is mounted in the center of the base with proper clearance from the cylinder to maximize effective filtering area and extend service life. High-grade sanitary polishing: inner wall roughness ≤0.3μm, outer wall ≤0.6μm.

Main Technical Parameters

Filtration Rating: 0.1, 0.2, 0.45, 1, 3, 5, 10~100 μm

Cartridge Material: PP, PES, PTFE, Nylon membrane, Titanium rod etc.

Cartridge Length: 10", 20", 30", 40"

Cartridge Connection: 226, 222, High 222, Flat end

Design Pressure: ＜0.6MPa

Cylinder Connection: Flange, Tri-clamp, Quick-fit, Threaded
